Split the Difference: A Homeowner's Guide to Ductless Mini Split Systems

What Are Ductless Mini Split Systems? A Quick Answer for Springfield Homeowners

Ductless mini split systems explained simply: they are heating and cooling systems that work without any ductwork, using a small outdoor compressor connected to one or more indoor air-handling units through a narrow conduit that requires only a 3-inch hole in your wall.

Here is what you need to know at a glance:

If you own a home in Springfield, Rochester, or Chatham, you have probably run into a room that is always too hot in summer or too cold in winter — no matter what you do with the thermostat. Maybe it is a finished basement, a garage conversion, a sunroom, or a master bedroom at the end of a long duct run. That is exactly the problem ductless mini split systems were built to solve.

Unlike central air systems that push conditioned air through a network of ducts — losing more than 30% of that energy along the way to leaks and poor connections — a mini split delivers comfort directly to the space that needs it, with no ducts required. The technology has been around since 1959, when it was first introduced in Japan, and it has steadily become one of the most reliable and flexible HVAC solutions available to homeowners today.

Whether you are considering one for a single problem room or thinking about whole-home zoned comfort, this guide covers everything you need to know before making a decision.

Ductless Mini Split Systems Explained: The Basics of Modern Comfort

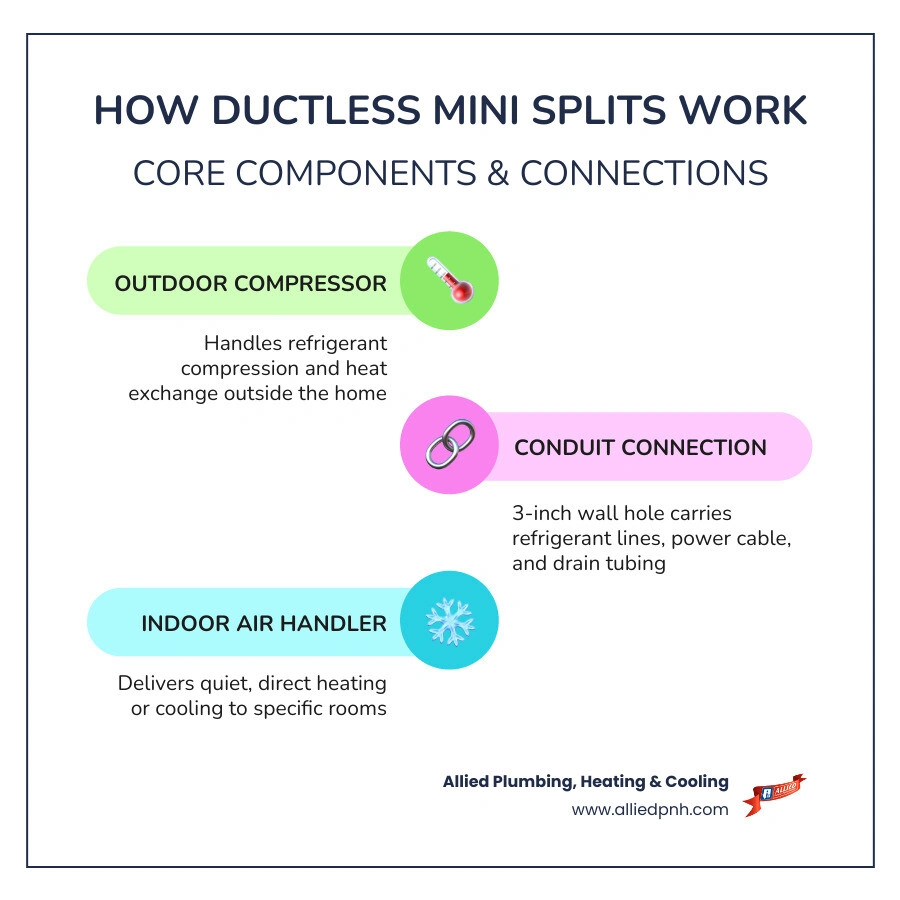

At its core, a ductless mini split system is a "split" system because it separates the noisy parts of the HVAC process from the quiet ones. In a traditional setup, you have a massive furnace and a large AC unit. In a ductless setup, the system is streamlined into two primary parts: the outdoor compressor (or condenser) and the indoor air-handling unit (often called a "head").

These two halves are linked by a conduit, which houses the power cable, refrigerant tubing, suction tubing, and a condensate drain line. Because the connection is so small, we only need to drill a hole about three inches in diameter through your exterior wall to get everything up and running.

When choosing a ductless AC system for your space, it is helpful to recognize the primary components that make the magic happen:

• Outdoor Compressor Unit: This sits outside your home on a pad or bracket. It is responsible for pressurized refrigerant and houses the inverter technology that makes these systems so efficient.
• Indoor Air Handler: This is the part you see inside. It contains the evaporator coil and a quiet fan to distribute air.
• Refrigerant Lines: These copper tubes carry the refrigerant back and forth between the units, moving heat in or out depending on the season.
• The Conduit: This protective sleeve keeps all the wiring and tubing bundled together and sealed tight.
• Remote Control or Smart Thermostat: Most units come with a handheld remote, but they can also be integrated into your smart home system.

Single-Zone vs. Multi-Zone Ductless Mini Split Systems Explained

One of the most common questions we hear in Springfield is whether a homeowner needs one outdoor unit for every indoor unit. The answer depends on your goals.

A single-zone system is perfect for conditioning one specific area, like a new sunroom or a workshop. It consists of one outdoor unit and one indoor unit. It is a straightforward, highly effective way to fix a "problem room."

A multi-zone system, however, allows you to connect multiple indoor heads to a single outdoor compressor. Depending on the model, one outdoor unit can support up to eight indoor units. This allows for "spot conditioning" or whole-home comfort where every family member can set their own temperature. If you want the master bedroom at 68 degrees but the guest room at 72, a multi-zone ductless AC in Springfield, IL makes that possible without any "thermostat wars."

Why Ductless Mini Split Systems Explained Are Perfect for Chatham Additions

If you are adding a new room to your Chatham home or finally finishing that garage, you might find that your existing central HVAC system isn't powerful enough to handle the extra square footage. Extending ductwork can be incredibly expensive and invasive, often requiring you to tear out drywall and lose closet space.

Ductless systems are the "Swiss Army knife" of HVAC for these scenarios. They are ideal for:

• Garage Conversions: Many local codes prohibit extending home ductwork into a garage due to safety concerns regarding fumes. A ductless unit provides independent, safe climate control.
• Sunrooms: With so much glass, sunrooms can get sweltering. A dedicated mini split can solve uneven cooling with ductless AC without overtaxing your main system.
• Historic Homes: In older Rochester homes where there is no room for bulky ducts in the walls, mini splits preserve the architectural integrity of the house.

How Does a Ductless System Work?

To understand ductless mini split systems explained, you have to understand the difference between generating heat and moving it. Traditional electric baseboard heaters or furnaces generate heat (using a lot of energy). A ductless mini split is a heat pump, which means it simply moves heat from one place to another.

In the summer, the indoor unit absorbs heat from your room and sends it through the refrigerant lines to the outdoor unit, where it is released. In the winter, the process reverses. Even when it is cold in Springfield, there is still thermal energy in the outdoor air. The outdoor unit captures that heat and "pumps" it inside.

The Power of Inverter Technology

Unlike a traditional central AC that is either "all the way on" or "all the way off," ductless systems use inverter-driven compressors. Think of it like cruise control for your car. Instead of flooring the gas and then slamming on the brakes (which wastes fuel), the inverter slows down or speeds up to maintain a perfectly steady temperature. This prevents the "pinging" sounds of expanding ducts and keeps your energy bills much lower.

This technology is why many central AC vs. ductless mini split comparisons favor ductless for efficiency—it simply doesn't have to work as hard to keep you comfortable.

Types of Indoor Units and Installation Options

When people think of mini splits, they usually picture a white box high on the wall. While that is the most common and cost-effective option, it is certainly not the only one. Depending on your room's layout and your aesthetic preferences, there are several ways to install your indoor heads.

• High Wall Mount: The classic choice. These are installed near the ceiling and are excellent at distributing air across a room. They are often the most affordable and easiest to maintain.
• Floor Mount: Perfect for rooms with slanted ceilings (like attics) or where wall space is taken up by large windows. These sit low on the wall, similar to a radiator, and are great for heating.
• Ceiling Cassette: These are recessed into the ceiling, leaving only a decorative grille visible. They offer 4-way airflow, making them perfect for large, open-concept living areas in Rochester.
• Slim Duct: These are "hidden" ductless units. They use a very small amount of ductwork hidden behind a wall or in a ceiling to condition one or two rooms while remaining completely invisible.

Deciding where to place your mini split units in Springfield is a critical step. You want the air handler in a spot where it can breathe—away from obstructions like curtains or wardrobes—to ensure the 3D-i-See sensors (available on many high-end models) can accurately scan the room for human heat signatures and direct air where it is needed most.

Benefits of Going Ductless in Rochester and Chatham

Why are so many of your neighbors making the switch? The advantages of mini split systems installed by us go beyond just simple cooling.

1. Massive Energy Savings: Because there are no ducts, you eliminate the 30% energy loss associated with traditional systems. Some units are up to 40% more efficient than conventional HVAC.
2. Improved Air Quality: Ductless units feature multi-stage filtration that can trap allergens, bacteria, and dust. Because the air isn't traveling through dusty floor vents, your indoor air stays much cleaner.
3. Whisper-Quiet Operation: Indoor units operate as low as 19–20 decibels. For context, a normal conversation is about 60 decibels. You will likely forget the unit is even running.
4. Zoned Comfort: You only pay to heat or cool the rooms you are actually using. If you spend all day in your home office in Chatham, you can keep that room perfect while letting the rest of the house drift to a more energy-saving temperature.
5. Quick Installation: While a full ducted system replacement can take days of construction, a ductless system can often be installed and running in just one day.

Maintenance and Longevity

A ductless system is a high-performance machine, and like any machine, it needs a little love to stay at peak efficiency. Fortunately, maintenance is relatively simple for homeowners.

The most important task is cleaning the filters. Most indoor units have reusable mesh filters that you can simply pop out, rinse in the sink, and put back. If you have pets or smoke, you should check these once a month. Dirty filters are the leading cause of the system underperforming or why your mini split is making clicking sounds, as the plastic components can expand and contract more aggressively if the unit is struggling for airflow.

Seasonal Maintenance Checklist:

• Monthly: Check and wash indoor air filters.
• Seasonally: Ensure the outdoor unit is clear of leaves, snow, or debris.
• Annually: Schedule a professional inspection. We check refrigerant levels, clean the coils, and ensure the condensate drain is clear to prevent water leaks.

With proper care, these systems typically last 15 to 20 years, making them a fantastic long-term investment for your home.

Frequently Asked Questions about Ductless HVAC

Can mini splits provide both heating and cooling?

Absolutely. Most modern mini splits are heat pumps equipped with a reversing valve. This allows them to provide air conditioning in the summer and high-efficiency heating in the winter. Specialized "cold climate" models can even provide significant heat when Springfield temperatures drop well below zero, sometimes maintaining 80% capacity at -22°F.

How do I choose the right size for my room?

Sizing is measured in BTUs (British Thermal Units). As a general rule, a 12,000 BTU unit can handle about 400 to 650 square feet. However, you shouldn't just guess. If a unit is too large, it will "short-cycle," turning on and off too quickly and failing to dehumidify the room. If it is too small, it will run constantly and wear out early. We perform a professional load calculation to ensure your Rochester home gets the perfect fit.

Are ductless systems quieter than window units?

There is no comparison! Window units are notoriously loud because the compressor is literally sitting in your window. With a ductless system, the loud compressor is outside, away from your living space. Indoor units are so quiet (often around 20–30 decibels) that they are a favorite for Chatham bedrooms and nurseries where silence is golden.

Conclusion

Ductless mini split systems explained: they are the future of home comfort in Central Illinois. Whether you are looking to fix a single uncomfortable room or want to overhaul your entire home's efficiency, these systems offer a level of control and quiet performance that traditional HVAC simply cannot match.
